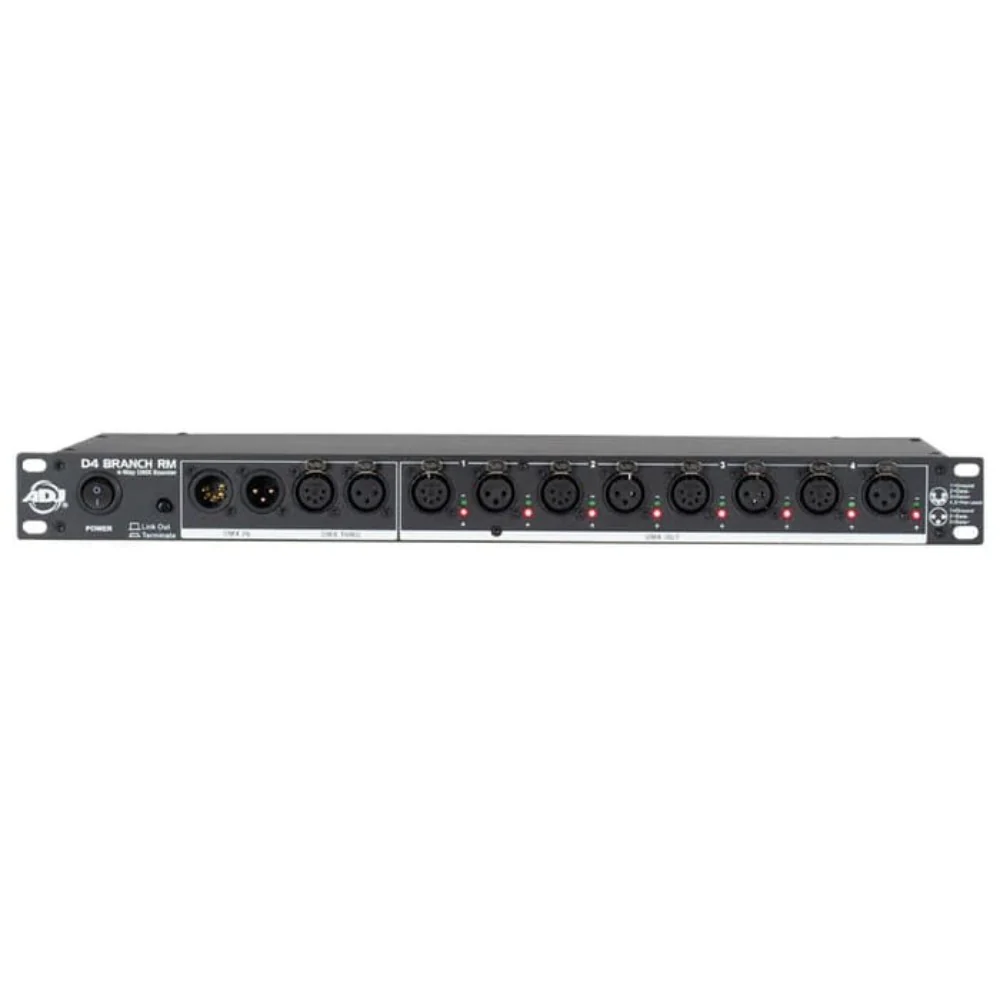

American DJ D4 Branch RM 4-Way DMX Distributor/Booster

DESCRIPTION

Add 4-way DMX signal splitting and boosting to your lighting rig with the D4 Branch RM from American Audio. The lightweight, single rackmount unit features both 3-pin and 5-pin connections on each channel for easy integration into any DMX-512 system, making it well suited for installations, touring, and rental applications.

Each of the four electronically isolated outputs features a driver to boost the signal strength, making the D4 a smart solution when long cable runs are required. The unit also sports an additional thru output channel with no signal boost. The four driven outputs can be disabled with the terminate button for testing purposes.

FEATURES

• Splits and Boosts DMX Lighting Control
• Splits 1 Input to 4 Boosted Outputs
• Electronically Isolated Outputs
• Integrates into Any DMX-512 System
• Rack Ears Included
• 3- and 5-Pin XLR Input/Output Jacks
• Output Drivers to Boost Signal
• Single Thru Port with No Output Boost
• 1 RU Rack Size

SPECIFICATIONS

• Inputs/Outputs:
  • 1x XLR 3-Pin (DMX) Male Input
  • 1x XLR 5-Pin (DMX) Male Input
  • 1x XLR 3-Pin (DMX) Female Throughput
  • 1x XLR 5-Pin (DMX) Female Throughput
  • 4x XLR 3-Pin (DMX) Female Output
  • 4x XLR 5-Pin (DMX) Female Output
• Channels: 4 (DMX)
• Power Source: AC Adapter
