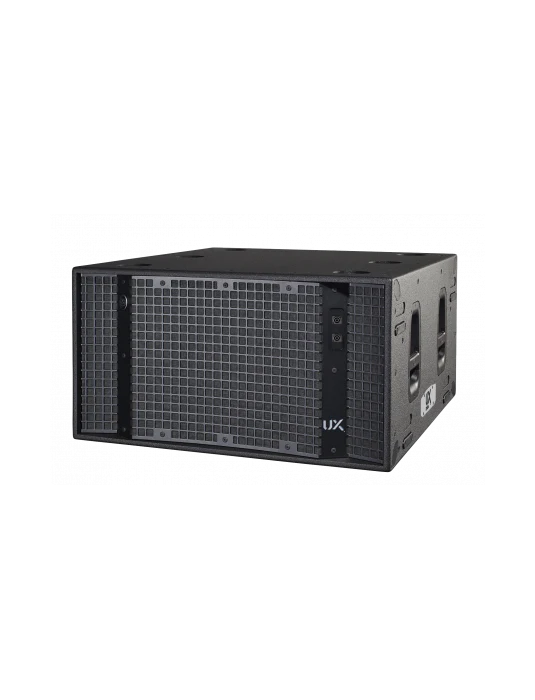

DAS Audio UX-218 Passive High Performance Subwoofer System
DESCRIPTION
The UX-218 joins the new range of UX Series subwoofer systems in both powered and passive versions. The UX-218 makes use of two 18UXN transducers. The new loudspeaker designed and manufactured by DAS offers impressive features such as a 4″ sandwich split winding voice coil, a remarkable 52 mm peak-to-peak excursion, and a powerful FEA-optimized neodymium magnet assembly. Thanks to the double silicon spider, the 18UXN controls the moving mass with high linearity. An aluminum demodulating ring benefits lower distortion and effective ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression.
The enclosure is constructed using Birch plywood and makes use of extensive bracing to eliminate resonances. The woodwork is finished with the robust DAS ISO-flex protective coating for durability. A dolly platform with locking casters denominated the PL-UX218S is offered to stack and move the systems. Protection during transport is provided by the optional covers available from DAS.
SPECIFICATIONS
Performance
- Frequency Range (-10 dB) 28 Hz – 125 Hz
- Nominal Impedance 4 ohms
- RMS Power Handling 2200 W
- Peak Power Handling 8800 W
- On-axis Sensitivity 1W/1 m 103 dB SPL
- Maximum Peak SPL at 1 m 143 dB
- Recommended Amplifier
- DX-100-230
- DX-100-115
- Recommended Processor DSP-4080
- Audio Input Connector 2 x speakON NL4
- Audio Output Connector 2 x speakON NL4
- Enclosure Construction Birch Plywood
- Enclosure Geometry Rectangular
- Rigging M10 Rigging Points
- Finish ISO-flex Paint
- Color Black
- Depth 1.005 mm (39,6 in)
- Dimensions ( H x W x D )
- 515 x 955 x 1.005 mm
- 20,3 x 37,6 x 39,6 in
- Net Weight 87,5 kg ( 192,9 lb )
- LF Driver 18UXN
- Carton Dimensions ( H x W x D )
- 560 x 1.020 x 1.055 mm
- 22,0 x 40,2 x 41,5 in
- Shipping Weight 96,0 kg ( 211,6 lb )
