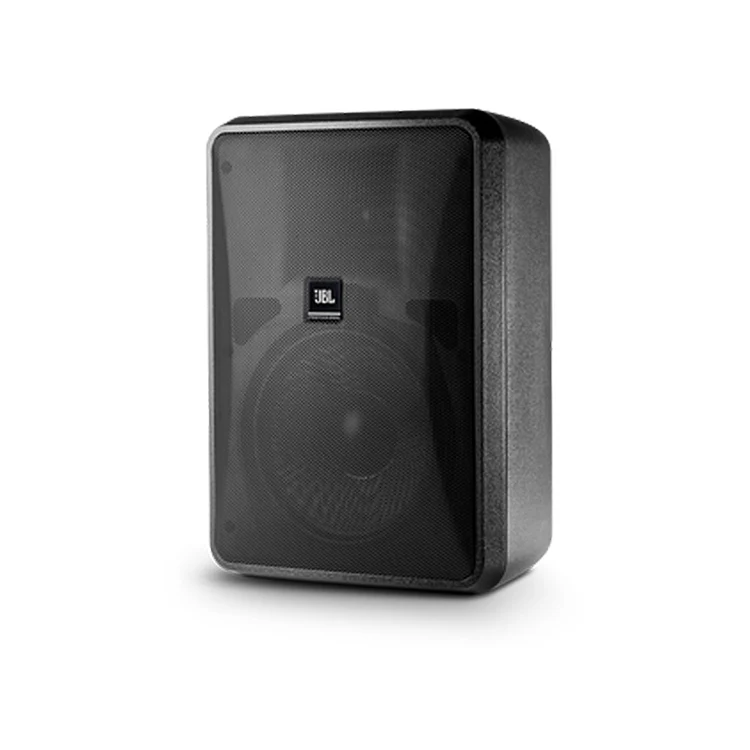

JBL Control 28-1 8" Two Way Vented Loudspeaker, Black

DESCRIPTION

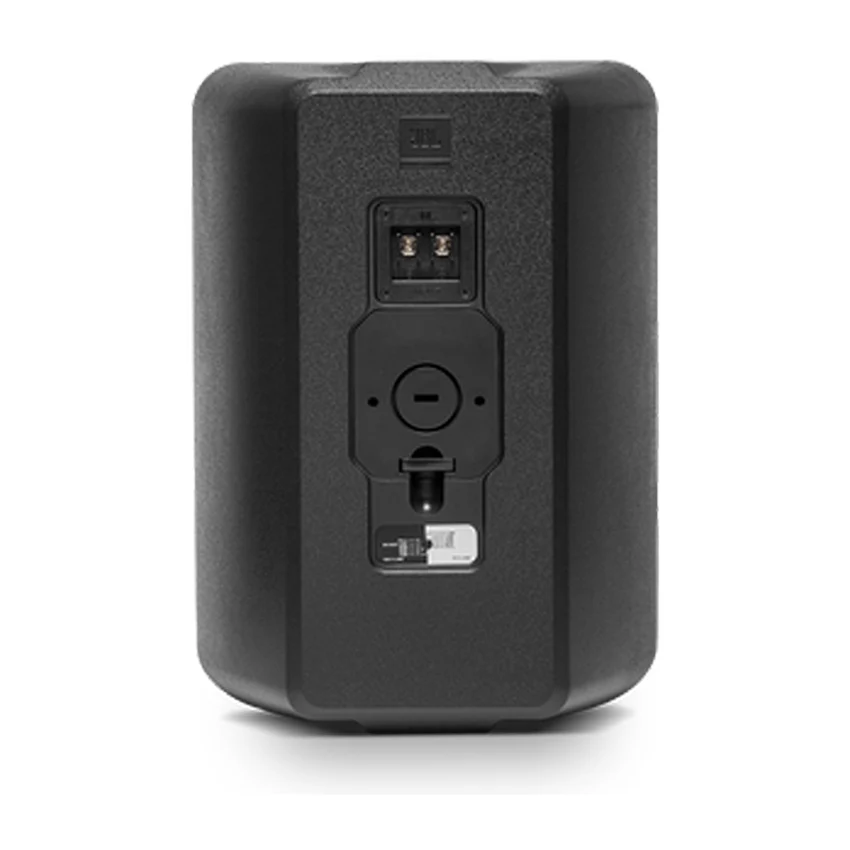

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary highdesign look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required. The unique InvisiBall mounting hardware is included in with each system, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation, and because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.

SPECIFICATIONS

• Frequency Range (-10 dB): 45 Hz to 20 kHz
• Frequency Response (+/-3 dB): 62Hz - 16 kHz
• Power Rating: 240 W Continuous Program (2 hrs) ; 120 W (480W peak), Continuous Pink Noise (2 hrs) ; 90 W (360W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
• Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
• Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
• Coverage Angle: 100° x 100°
• Directivity Factor: (Q)7.3 (averaged 1kHz – 16kHz)
• Directivity Index: (DI)8.3dB (averaged 1kHz – 16kHz)
• Nominal Impedance: 8 ohms (THRU setting)
• Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
• Transformer Taps: 70V = 60W, 30W, 15W, 7.5W ; 100V = 60W, 30W, 15W ; Insertion Loss = <0.94 dB at any tap setting ; Thru Setting = 8Ω nominal
• Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
• Low Frequency Transducer: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
• High Frequency Transducer: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former
• Included Accessories: InvisiBall™ wall-mounting system), 6 mm x 180 mm hex key
• Optional Accessories: MTC-28UB-1 – Yolk-type U-bracket (&-WH) ; MTC-28WMG-1 – WeatherMax grille with backing (&-WH) ; MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)
