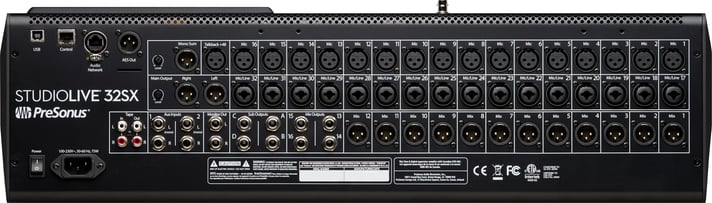

PreSonus StudioLive Series III 32SX Digital Console Mixer
DESCRIPTION
The StudioLive 32SX is a 32-channel small-format digital mixer packed into a 25-fader chassis. The split-fader workflow options let you manage 32 input channels in two fader layers while providing access to your mix outputs on eight additional faders. Thanks to AVB; it's easily expandable - readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for remote inputs. The 32SX's 16 FlexMixes can be individually configured as aux buses, subgroups, or matrix mixes - your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage EQ and classic compression options on every input channel and output bus.
The 32SX also ships with PreSonus Capture® recording software, which can run directly on your mixer, Windows, or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.
FEATURES
- Portable, and flexible digital console for installed sound, mobile application, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
- Fully recallable, 40-input, 32-channel digital mixing console
- Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
- Built-in 128-channel (64x64) USB interface - the most of any mixer
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: a suite of integrated software, including Studio One® Artist DAW and Capture®
SPECIFICATIONS
MICROPHONE PREAMP
-
Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
-
Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
-
Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
-
Gain Control Range: 0 dB to 60 dB (±1 dB)
-
Microphone Preamp Maximum Input Level: =+12 dBu (Unity Gain)
-
Phantom Power: +48 VDC (±2 VDC)
-
Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
-
Microphone Preamp Input Impedance: 1 kΩ
LINE INPUTS
-
Line Inputs Maximum Level: =+18 dBu
-
Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
-
Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
-
Line Inputs Impedance: 10 kΩ
HEADPHONE OUTPUTS
-
Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
-
Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
-
Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
DIGITAL AUDIO
-
Digital Audio Dynamic Range
- ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic
- Range: 115 dB (A-weighted, 48 kHz)
-
Digital Audio Bit Depth: 24
-
Supported Sample Rates: 48 kHz, 44.1 kHz
ELECTRONICS
-
Voltage: 100-120V
-
Headphone Jack: 1/4" TRS Active Stereo
MISCELLANEOUS
-
Connection Type: IEC
VIDEO
Original: $2,999.00
-65%$2,999.00
$1,049.65
