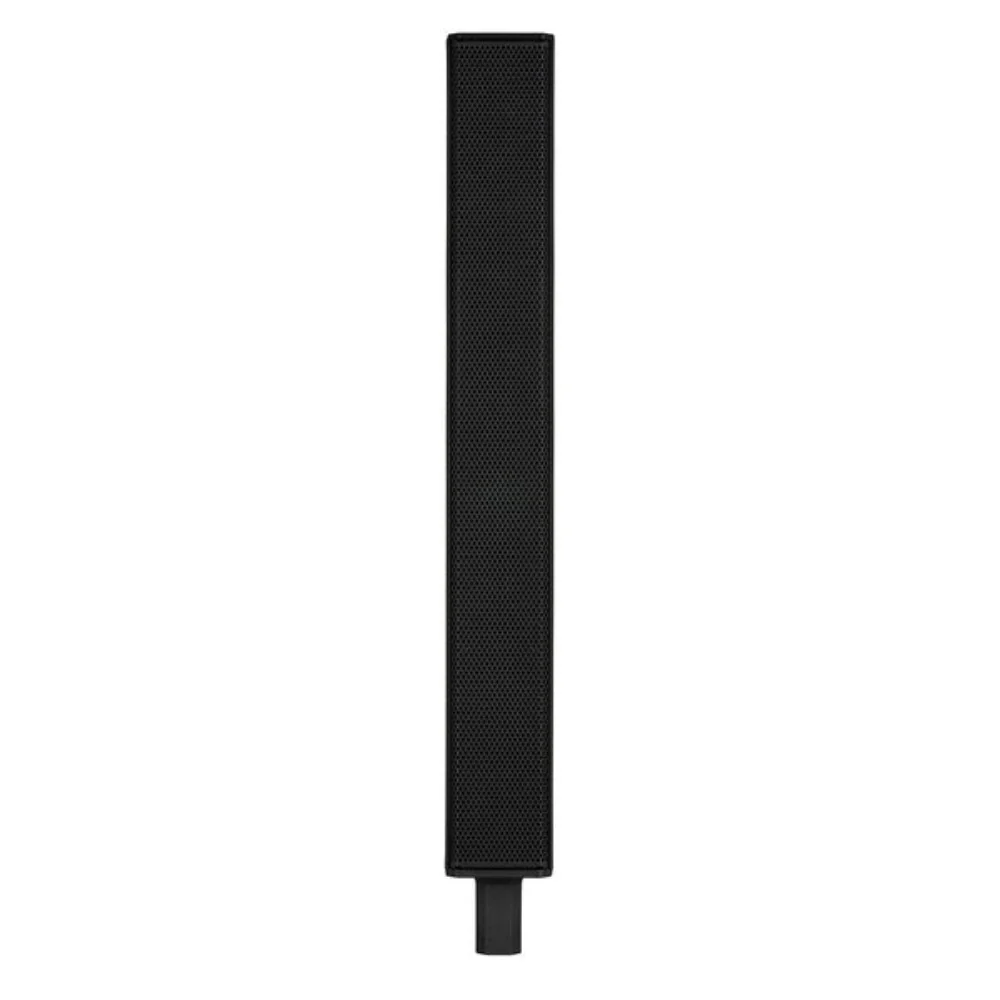

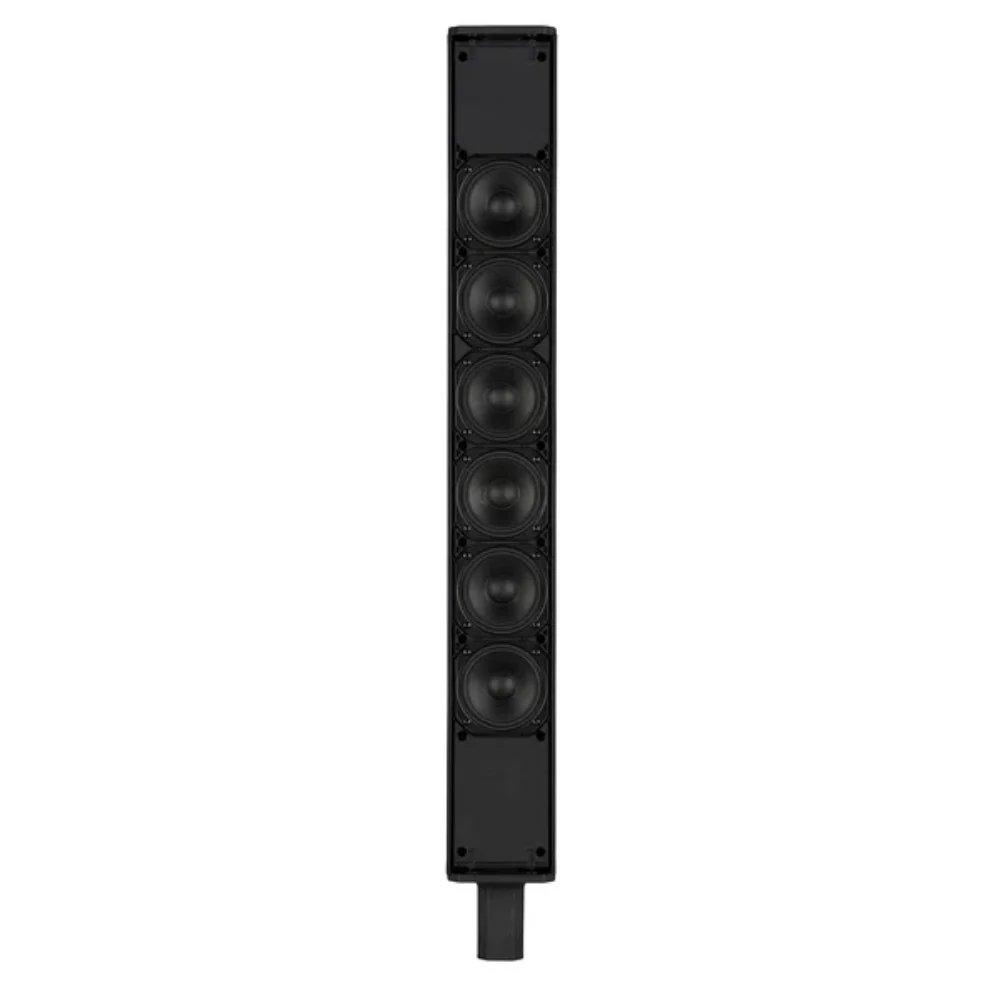

RCF EVOX-J11 (Top Only) Active 3500w 12" Three-way Column Array
DESCRIPTIONĀ
The RCF J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75" compression driver on a 120Ā° x 40Ā° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, the J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF's touring-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and a straightforward setup for bands, DJs, and live performers.
FEATURESĀ
- 132 dB Max SPL
- 3500 W Class-D Amplifier - Built-In DSP
- 1.75" Neo Compression Driver - 120Ā° x 40Ā° True Resistive Waveguide
- 12 x 3" Full-Range Neo Transducers
- 12" RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design
- Top Speaker Padded Carrying Bag Included
- PowerCON TRUE1-TOP Mains Connector
SPECIFICATIONSĀ
- Frequency Response: 37 Hz-20000 Hz
- Max SPL @ 1m: 132 dB
- Horizontal coverage angle: 120Ā°
- Vertical coverage angle: 40Ā°
- Compression Driver: 1 x 0.75" neo, 1.75" v.c
- Fullrange: 12 *3.0^ prime prime neo, 1.0" v.c
- Woofer: 1 x 12", 2.5" v.C
- Input Signal: bal/unbal
- Input Connectors: Combo XLR/Jack
- Output Connectors: XLR
- Input Sensitivity: +4 dBu
- Crossover Frequencies: 160 Hz/1800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
- Total Power: 3500 W Peak
- High Frequencies: 1500 W Peak
- Low Frequencies: 2000 W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
