RCF EVOX-JMIX-9 (Sub Only) Active 2100w 12" Three-way Column Array with 8 Channel Mixer

DESCRIPTION

The RCF JMIX9 is an active, three-way portable music system featuring a digital 8-channel mixer and Bluetooth streaming and control. A 1.75" compression driver on a 120° x 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplification, the JMIX9 delivers an impressive 130dB Max SPL output. Part of the EVOX J Series, it incorporates RCF's touring-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and a straightforward setup for bands, DJs, and live performers. The built-in multi-channel mixer features EQ, reverb, phantom power, and Bluetooth streaming, while the intuitive JMixRemote app provides complete control from your smartphone.

FEATURES

• 8-Ch True-Stereo Digital Mixer w/ Bluetooth
• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75" Neo Compression Driver - 120° x 40° True Resistive Waveguide
• 6 x 3" Full-Range Neo Transducers
• 12" RCF Precision Low-Frequency Woofer
• Enhanced Coverage And Clarity
• Sleek Composite Cabinet With Aluminum Stand Mount
• VDE Mains Connector

SPECIFICATIONS

• Frequency Response: 40 Hz-20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°
• Compression Driver: 1 x 0.75" neo, 1.75" v.c
• Fullrange: 6 x 3.0" neo, 1.0" v.c
• Woofer: 1 x 12", 2.5" v.C
• Input Signal: bal/unbal
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

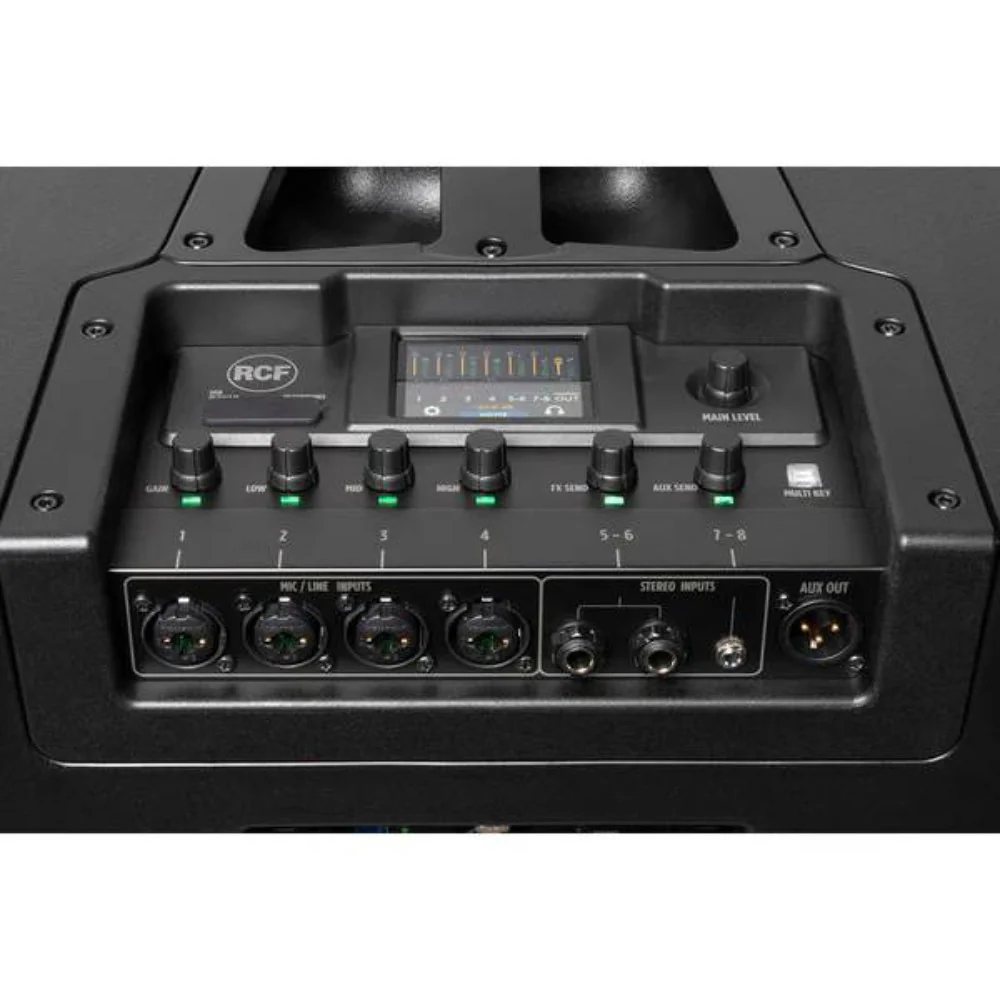

• Controls: Digital mixer controlled by touch screen and encoders
• Total Power: 2100 W Peak
• High Frequencies: 700 W Peak
• Low Frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE
• Mic Inputs: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB-36 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz-400 Hz
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 0 dB-36 dB
• Line Input Impedance: 10 kohm
• A/D Dynamic range: 120 dB
• Stereo Line: 2
• Gain Selection: 0 dB-0 dB
• Stereo Line Input Impedence: 24 kohm
